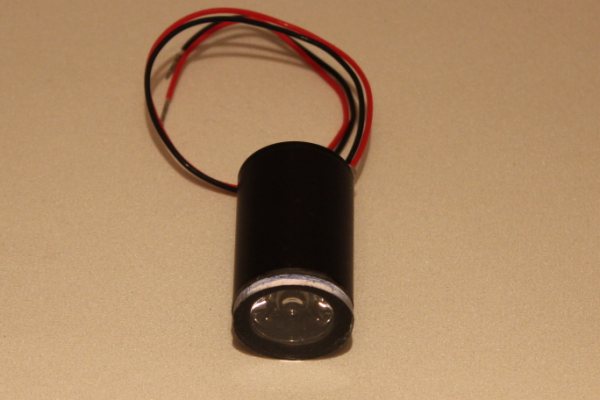

Single Lamp 3 Watt Floodlight Details and Specifications
Part  #  01030 B

Call us! (303) 919-1347

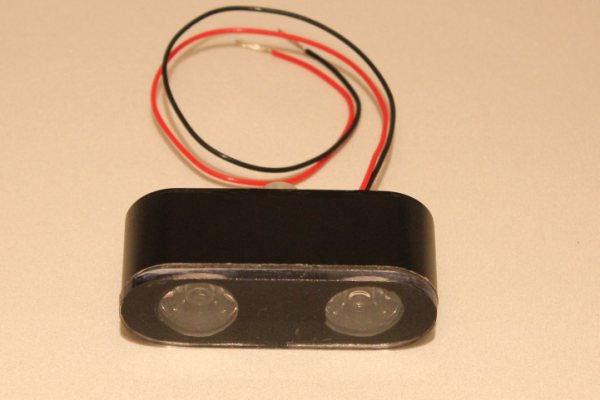

Double Lamp 6 Watt Floodlight Details and Specifications
Part # 02030 B

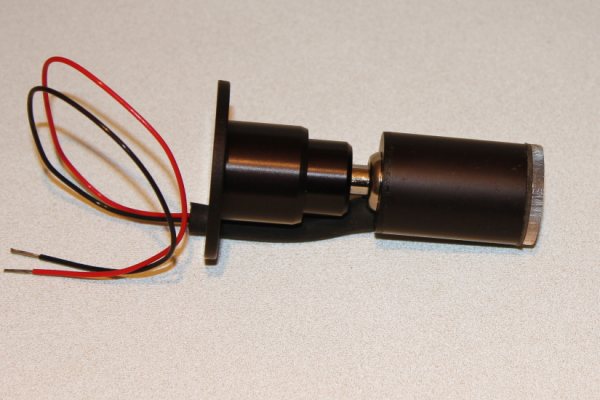

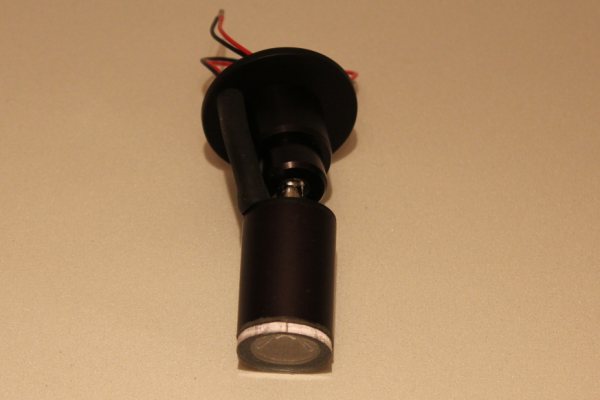

Single Lamp with Surface Mount Ball Adjuster Details and Specifications
Part # 11030 B

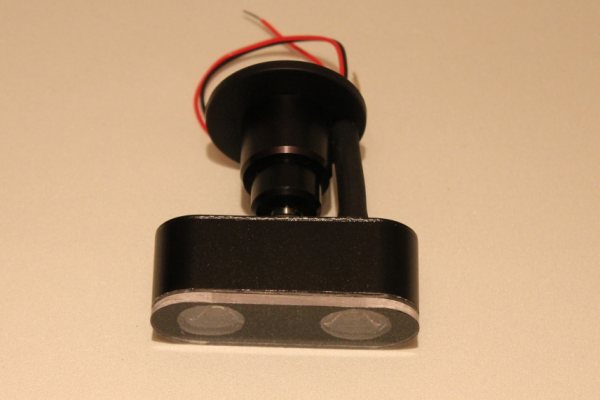

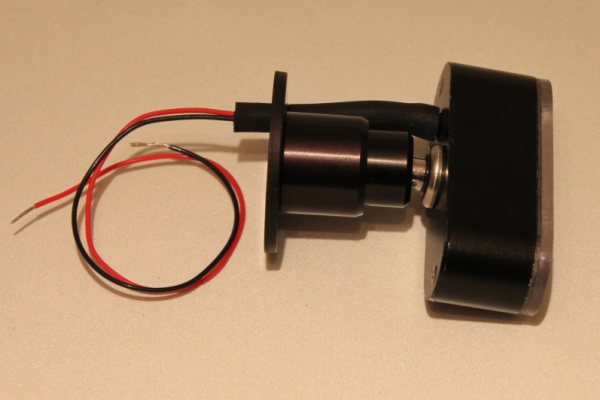

Double Lamp with Surface Mount Ball Adjuster Details and Specifications
Part # 12030 B
Pro Series LED Marine Lighting Product Details

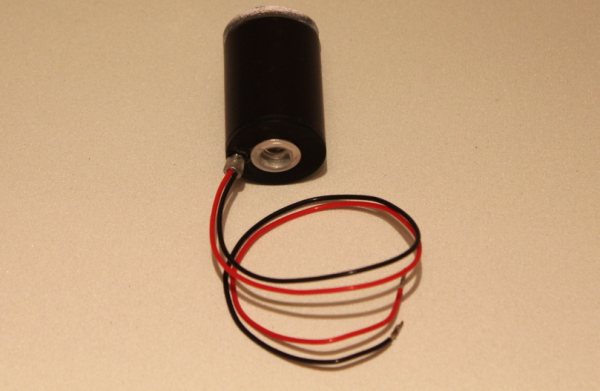

Details & Specifications:
Dimensions
Length: 1 5/8"
Diameter: 1"
LED
12 to 24 Volt Operation
3 Watt High Intensity White LED
High Intensity Light Output
Low Power Consumption
Long Life
True White Light Output
Color Temperature: 5500 ~ 6500k
Luminous Intensity : 160 Lumens
30 Degree Lens Unit
LED Driver
12 to 24 Volt Operation
Solid State
Current (peak): 750mA
Protection Rate: IP68
Conformal Encapsulated PCB
Electrical Protections:
Short circuit
Over Current
Reverse Polarity
Working Temperature: -20~80 Celsius degree
Housing
Material: 6061 T6 Aluminum
Finish: Black Hard Coat Anodized
Mounting Threaded Insert
Material: 6061 T6 Aluminum
1/4-20 Threads
Thread Depth 3/8" Max
Wiring Bushing
Material: 6061 T6 Aluminum
Protrusion Length 3/16"
Protective Lens
Material: Lexan Polycarbonate
Wiring
8" Leads
Teflon Insulation
22 gauge Black and Red
Fine Stranded Silver Tinned

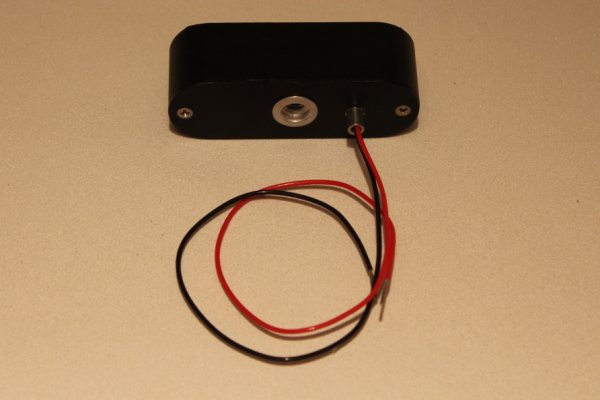

Details & Specifications:
Dimensions
Width: 2 3/4"
Height: 15/16"
Depth: 1 1/16"
LED
12 to 24 Volt Operation
Two 3 Watt High Intensity White LED's
High Intensity Light Output
Low Power Consumption
Long Life
True White Light Output
Color Temperature: 5500 ~ 6500k
Luminous Intensity : 320 Lumens
Two 30 Degree Lens Unit
Two LED Drivers
12 to 24 Volt Operation
Solid State
Current (peak): 750mA
Protection Rate: IP68
Conformal Encapsulated PCB
Electrical Protections:
Short circuit
Over Current
Reverse Polarity
Working Temperature: -20~80 Celsius degree
Housing
Material: 6061 T6 Aluminum
Finish: Black Powder Coated
Mounting Threaded Insert
Material: 6061 T6 Aluminum
1/4-20 Threads
Thread Depth 3/8" Max
Wiring Bushing
Material: 6061 T6 Aluminum
Protrusion Length 1/4"
Protective Lens
Material: Lexan Polycarbonate
Wiring
8" Leads
Teflon Insulation
22 gauge Black and Red
Fine Stranded Silver Tinned











Details & Specifications:
Part # 01030 B Single Lamp 3 Watt LED Floodlight
Dimensions:
Overall Length:
Mounting Flange Diameter: 1 3/4"
Ball Adjuster:
Housing Material: 6061 T6 Aluminum
Urethane Ball Tensioner
Housing
Material: 6061 T6 Aluminum
Finish: Black Hard Coat Anodized
Polyurethane Adjustment Ball Tensioner and Bushing
Permanent Adjustment Tension
Adjustment will not change in the most jarring seas or intense wind
Near Hemispherical Adjustment Range
Wiring Sheathing
UV Stable
Material: Long Life EPDM
Mounting Flange
Material: 6061 T6 Aluminum
Finish: Black Hard Coat Anodized
Stainless Steel Hardware
Mounting Options:
3M VHB Mounting Tape Included
Mounting flange may be drilled for screw installation









Details & Specifications:
Part # 02030 B  Double Lamp 6 Watt LED Floodlight
Dimensions:
Overall Length:
Mounting Flange Diameter: 1 3/4"
Ball Adjuster:
Housing Material: 6061 T6 Aluminum
Urethane Ball Tensioner
Housing
Material: 6061 T6 Aluminum
Finish: Black Hard Coat Anodized
Polyurethane Adjustment Ball Tensioner and Bushing
Permanent Adjustment Tension
Adjustment will not change in the most jarring seas or intense wind
Near Hemispherical Adjustment Range
Wiring Sheathing
UV Stable
Material: Long Life EPDM
Mounting Flange
Material: 6061 T6 Aluminum
Finish: Black Hard Coat Anodized
Stainless Steel Hardware
Mounting Options:
3M VHB Mounting Tape Included
Mounting flange may be drilled for screw installation
